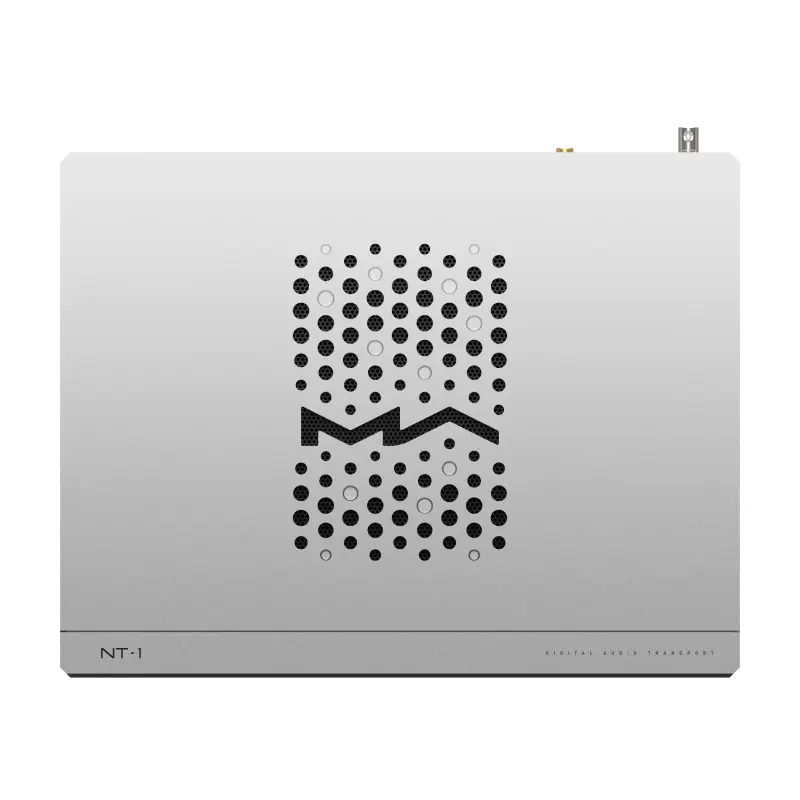

Matrix Audio -NT-1 digital audio transport
| Brand: Matrix Audio |
| Product Type: Network Streamers |
Matrix Audio -NT-1 digital audio transport
Matrix Audio proudly presents the NT-1, a groundbreaking masterpiece designed for audiophiles in pursuit of perfection. This high-end digital audio transport unlocks the vast world of network streaming, extending beyond the limitations of traditional audio sources, and infuses your audio system with new energy. Matrix Audio introduces a new family design language, equipped with the same Hi-Fi streaming hardware as the M Series. With a powerful core upgrade and a next-level display enhancement, it delivers a brand-new experience that captivates both your ears and eyes.
Shareable Internal Storage
With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.
Ensure Pure Audio Transmission

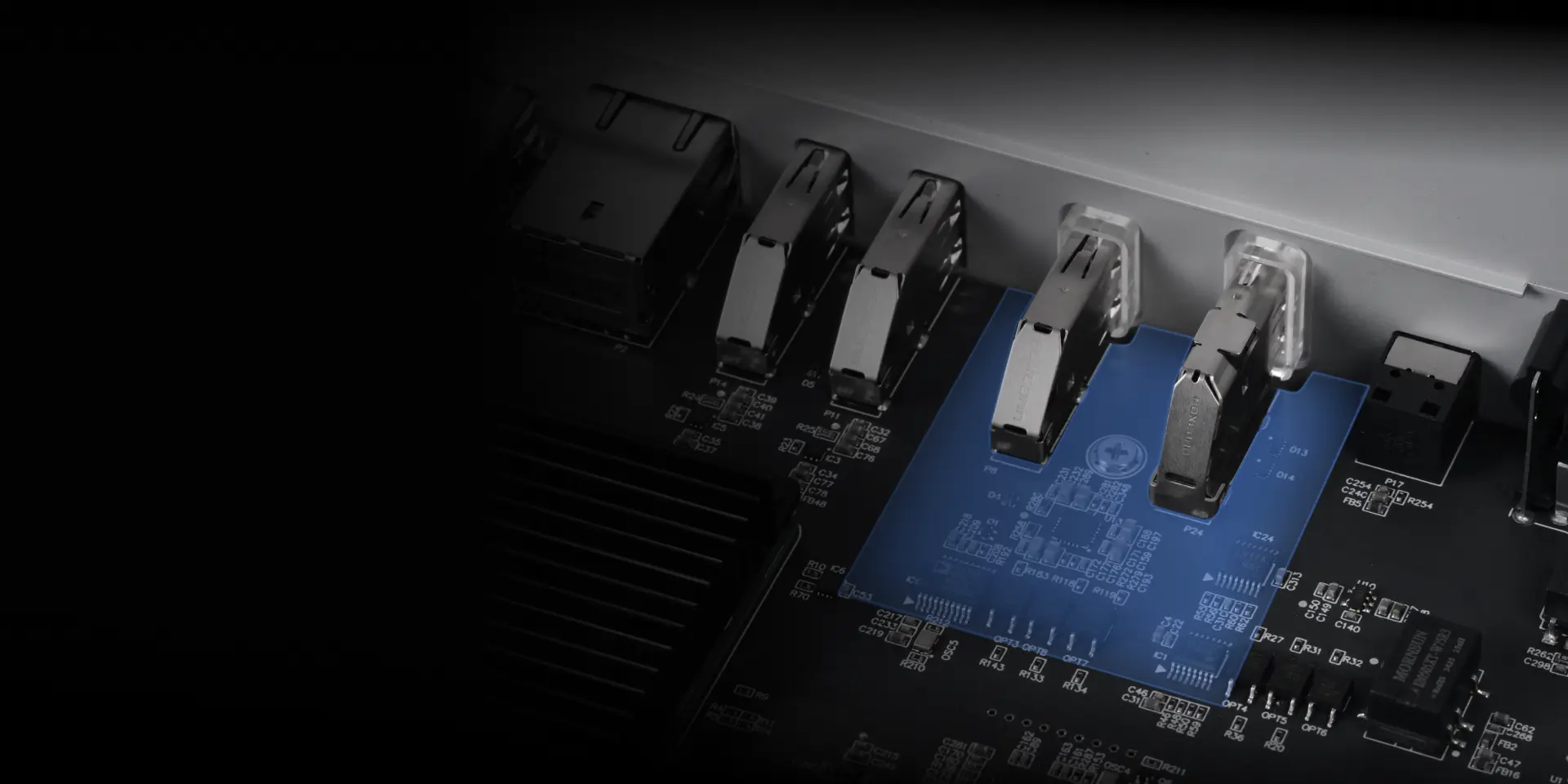

NT-1 features an audio-specific USB DAC interface with electrical isolation. It not only deeply optimizes transmission noise, but also isolates the ground ware of USB port from the device ground wire, fundamentally reducing noise and interference during audio transmission and ensuring the purity of the audio signal.
Flexible Connection Options

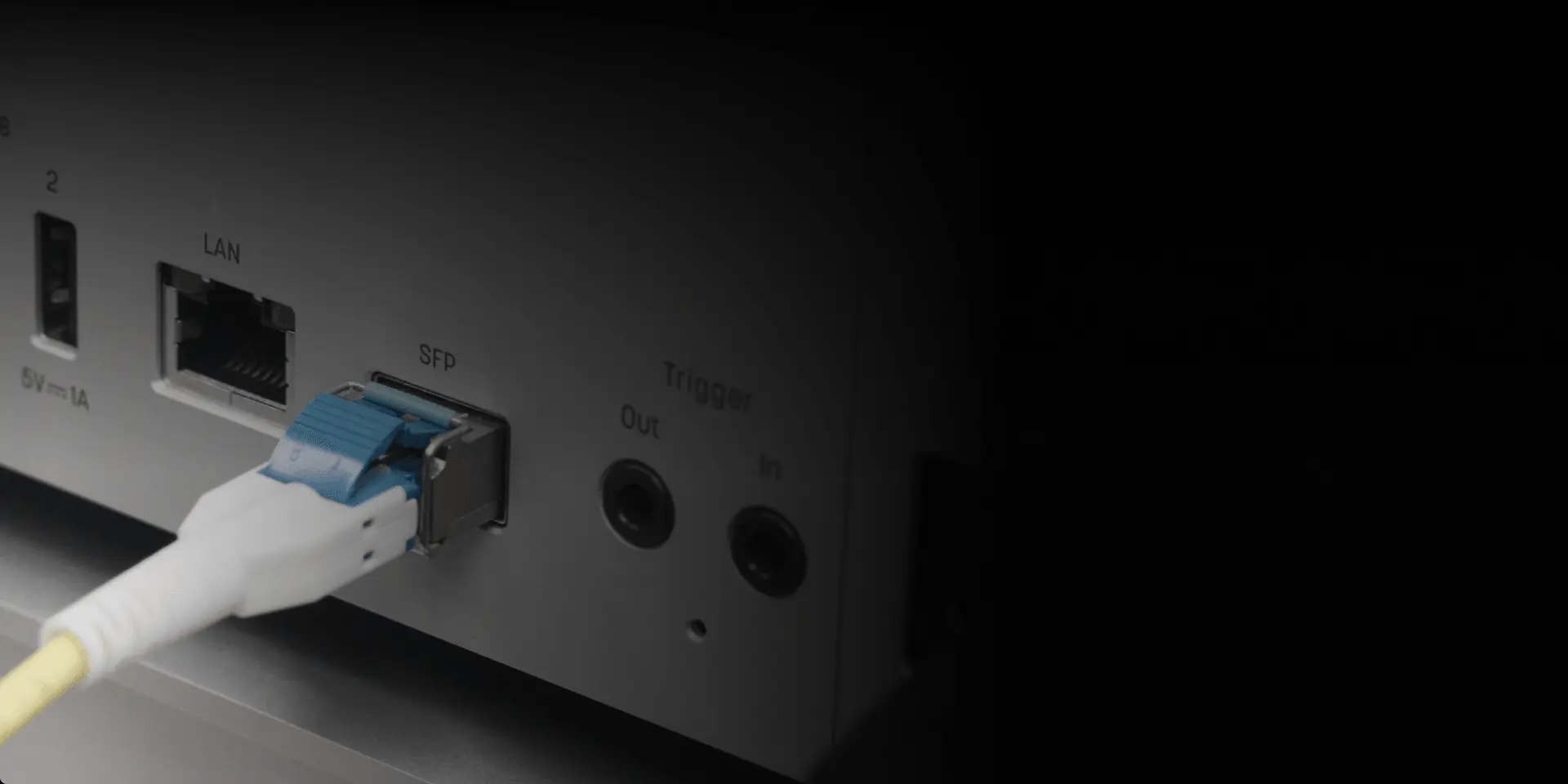

With different SFP modules, you can freely expand a optical fiber or Ethernet ports as needed. When used with audio grade network switch from Matrix Audio, it can create a more efficient and stable network connection to meet the needs of Hi-Fi scenarios.
Unlimited Resources
at Your Fingertips

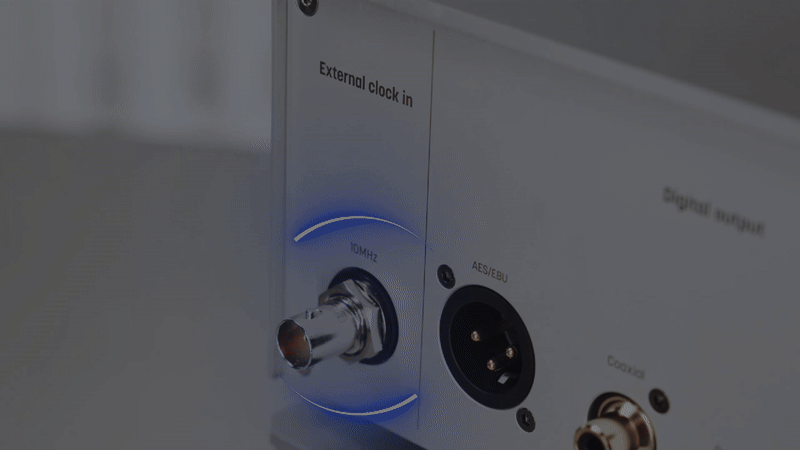

Excellent Clock SystemExcellent Clock System
This clock system derives from the flagship model of Matrix Audio, which has dual modes. In internal clock mode, the femtosecond clock provides a reference for the RF synthesizer, outputting a highly stable, low-phase-noise audio clock. In external clock mode, the incoming clock signals become the reference for the RF synthesizer, outputting an audio clock that is highly stable, low-phase-noise, and phase-synchronized with the input clock. When paired with Matrix Audio SC-1 audio-grade clock source, it can further tap into the audio performance potential of the device and move to an even higher level.
Full Linear Power

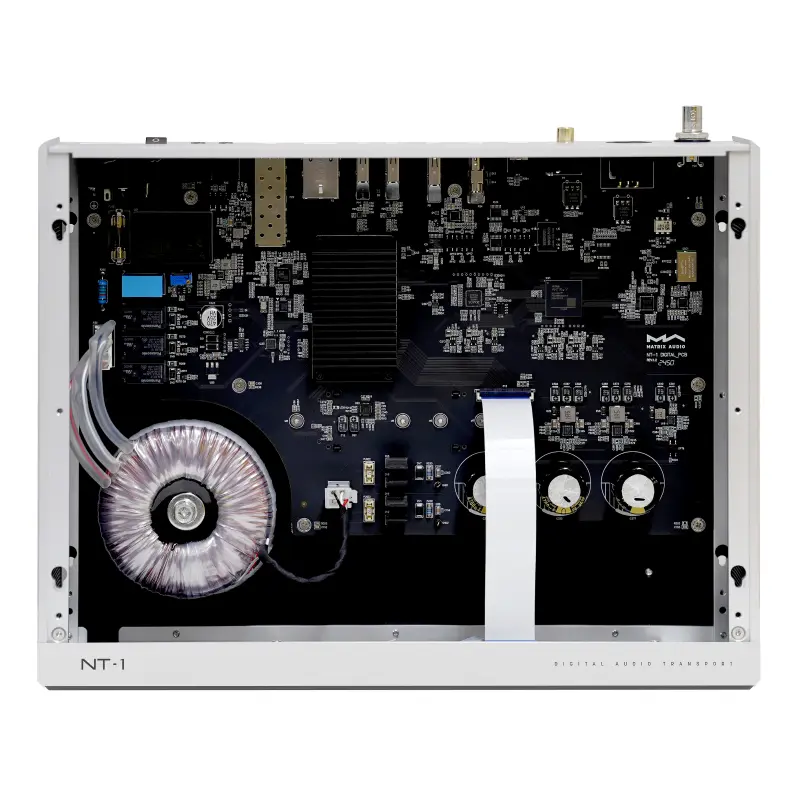

The power supply system is built by a 60W toroidal transformer and multiple LDOs. The power for the digital audio processing core and the USB DAC interface are supplied by two independent windings of the transformer, ensuring stable operation of each part and effectively reducing noise interference.
NT-1 SPECIFICATIONS
Matrix NT-1 Manual

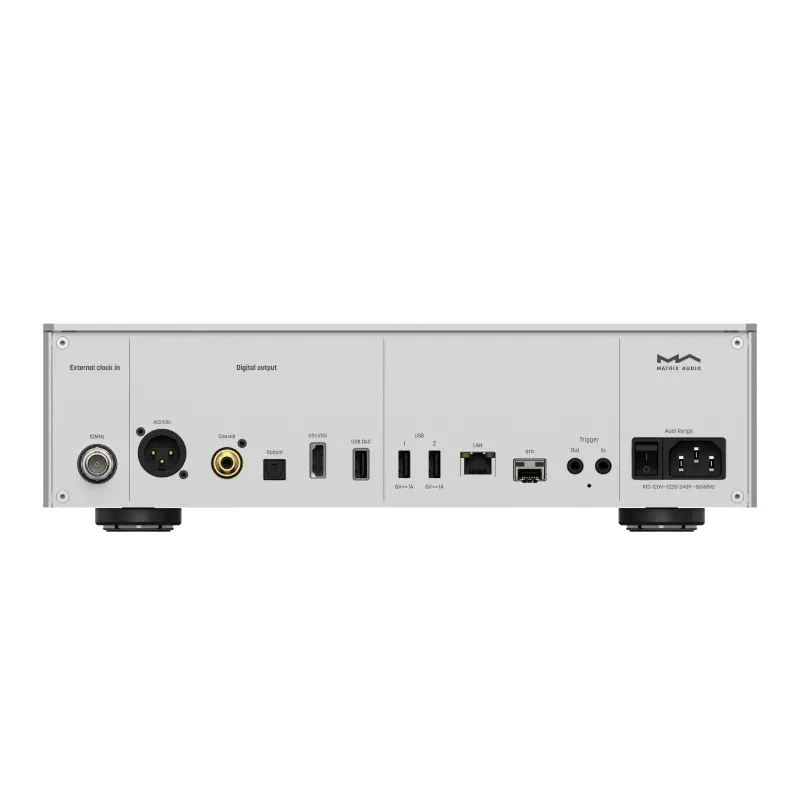

Digital Output
| COAXIAL, OPTICAL & AES/EBU | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| DSD 2.8MHz (DoP) | |
| IIS LVDS | PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
| DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz | |
| USB DAC | Depends on the specifications supported by the connected USB DAC device. |
| The USB DAC port provides a maximum of 5V/1A low-noise power supply. |
Network
| LAN | 10/100/1000 Mbps |
| SFP | 10/100/1000 Mbps |
USB
| USB 3.0 * 2 | The USB port provides a maximum power of 5V/1A. |
| The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
External Clock Input
| 10MHz / 50Ω / Sine wave or square wave input |
Trigger Interface
| Trigger Input | DC 6-12V<10mA |
| Trigger Output | DC 12V/50mA |
Storage Extension
M.2 2280 2260 2240 NVMe PCIe SSD slot *1 The maximum power specification provided by the expansion slot is DC 3.3V/3A. |
Power Specs
| Power Voltage | AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz Auto Range |
| Standby Power Consumption | < 5W |
| Maximum Power Consumption | < 50W |
Weight & Size
| Weight | 4.6kg (10.14 pounds) |
| Size | Width: 330 mm (12.99 inches), Depth: 267 mm (10.51 inches), Height: 97 mm (3.82 inches) |
Accessories
| Power cable * 1 | |
| Printed material * 1 | |
For improvement purpose, specifications subject to changes without prior notice.For improvement purpose, specifications subject to changes without prior notice.
